Quick start: Extract information from an image using AI

Imagine you are the owner of a car dealership and you need to frequently update your sales inventory. Using AI in automation, the process can be greatly simplified for the end user. Here’s what the experience could be for them:
  1. Take a photo of the new car on a mobile device.
  2. Upload the image to your AppSheet app.

Using AI, AppSheet extracts data from the photo, such as car make, model, color, and year.

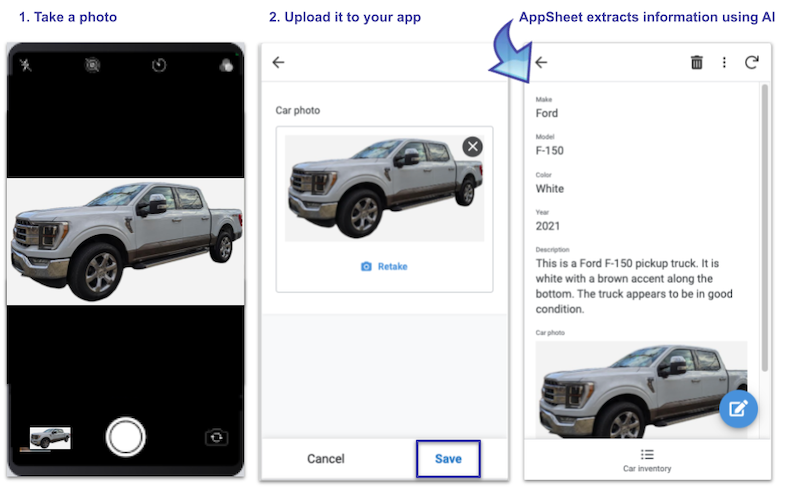

Take a photo, upload it to the AppSheet app, and AppSheet extracts information using AI

In this Quick start, you'll build an automation that uses AI to update the inventory at a car dealership. Specifically, you'll create an AppSheet database and use it to create an app, then build an automation using AI to extract information from a car photo and categorize the car by body style.

See also the Car identification with Geminisample app which demonstrates a more comprehensive scenario.

To build an automation to extract information from a car photo and categorize the car by body style, do the following steps:

  1. Create an AppSheet database
  2. Create an app using the AppSheet database
  3. Build an automation to extract information from a photo using AI
  4. Customize the input form
  5. Run the automation in the app preview

Step 1: Create an AppSheet database

First, you'll  create an AppSheet database and add the columns you need to store information about the car, such as make, model, year, description, and so on, and an Image column that will be used to upload a photo of the car.

AppSheet apps are all about the data. Though it may be time consuming, carefully designing and setting up your data is a fundamental step in your app development.

To create an AppSheet database, do the following:

  1. Sign in to AppSheet.
    The My Apps page is displayed.
  2. Select Create > Database > New database.
    A new AppSheet database is created and opened in the database editor
  3. Click within the name, Untitled database, and change the name of the database to: Car inventory

    Change AppSheet databse name to Car inventory
  4. Change the name of the Table 1 table:
    1. Position your cursor in the Table 1 tab and select More  > Table settings.

      Select More > Table settings
    2. Change the table name to: Car inventory

      Table settings with name changed to Car inventory
    3. Leave all other fields set to the default values.
    4. Click Save.
  5. Delete the dummy rows in the table, as follows:
    1. Click in column 1 and drag the cursor to highlight all rows in the table.

      Highlight dummy values in table

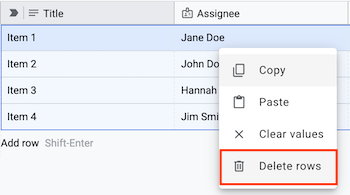

    2. Right-click on the selected rows and select Delete rows.

      Select Delete rows when you right-click
      A confirmation dialog displays to confirm the delete operation.
    3. Click OK to confirm the operation.
  6. Edit the columns in the table as indicated in the following table:
    Edit column Steps
    Change Title to Make

    Do the following:

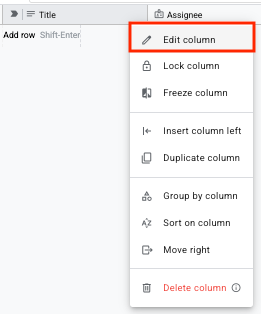

    1. Position your cursor in the Title column header and select More  > Edit column

      Edit name of column in AppSheet database

    2. Change the Name field to Make and click Save.

      Change Name to Make and click Save

    Change Assignee to Model

    Do the following:

    1. Position your cursor in the Assignee column header and select More  > Edit column.
    2. Change the Name field to Model.
    3. Key the Type field set to Name.
      This indicates that the content is a proper name. Alternatively, you could set this to Text.

    4. Click Save.

    Change Status to Color

    Do the following:

    1. In the Status column header, select More  > Edit column.
    2. Change the Name field to Color.
    3. Leave the Type field set to Enum and the Item type field set to Dropdown.
    4. Edit the three Enum options as follows:
      1. Double-click in the Not started option field and change the name to White.
      2. Double-click in the In Progress option field and change the name to Green. Then, click the color setting to the left of the name and choose the green color block.

        Add another color option. Enter green and select green as the color.
      3. Double-click in the Complete option field and change the name to Yellow. Then, click the color setting to the left of the name and choose the yellow color block.
    5. Add more Enum color options, as required, and an Other option to account for colors that aren't defined:
      1. Click Add option and enter Orange.
        The color setting should be set to orange automatically. If it's not, then, click the color setting to the left of the name and choose the orange color block.
      2. Click Add option and enter Red.
        The color setting should be set to red automatically. If it's not, then, click the color setting to the left of the name and choose the red color block.
      3. Click Add option and enter Blue. Then, click the color setting to the left of the name and choose the blue color block.
      4. Click Add option and enter Silver. Then, click the color setting to the left of the name and choose the silver (or grey) color block.

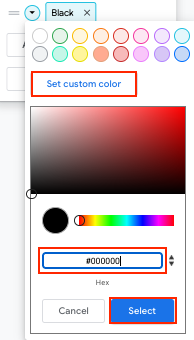

      5. Click Add option and enter Black. Then, click the color setting to the left of the name and set the color to black by clicking Set custom color, in the Hex field entering #000000, and clicking Select

      6. Click Add option, enter Other. Then, click the color setting to the left of the name and choose the white color block.
        Note: "Other" will be used to catch colors that aren't defined in the list of options. You could then update the Enum options later to include any colors that were set to Other.

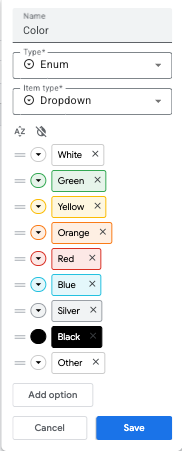

        The Color Enum settings appear as follows:
      7. Click Save.

    Change Date to Year

    Do the following:

    1. In the Date column header, select More  > Edit column.
    2. Change the Name field to Year.
    3. Change the Type field to Number.
    4. Click Save.
      Note: When prompted, click Yes to confirm the column type change. The information doesn't apply in this case since there's no data in the table.
  7. Add a new Description column, as follows:
    1. Click + Add column in the column header.
    2. Change the Name field to Description.
    3. Set the Type field to Text.
    4. Click Save.

      Add Description column
  8. Add a new Image column, as follows:
    1. Click + Add column in the column header.
    2. Change the Name field to Car photo.
    3. Set the Type field to Attachments > Image.
    4. Click Save.

      Add Image column named Car photo

The columns in the AppSheet database appear as shown:

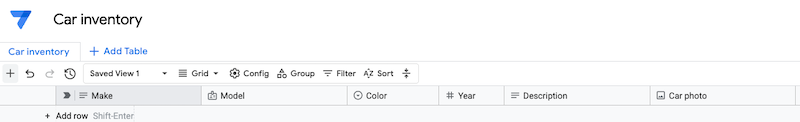

AppSheet database named Car inventory with columns including Make, Model, Color, Year, and Car photo

Next, you'll create an app using the AppSheet database.

Step 2: Create an app using the AppSheet database

To create an app using the AppSheet database, do the following:

  1. In the top-right corner of the database editor, click Apps.

    Click Apps in the database editor to create an app

    The Apps using Car inventory pane displays. No apps are listed.
  2. Click New AppSheet app.
    The AppSheet app is created and opened in the app editor in a new tab.
  3. In the app editor, in the left navigation, click  to display the Data pane (if it isn't already displayed).

    Click Data button in the left navigation bar

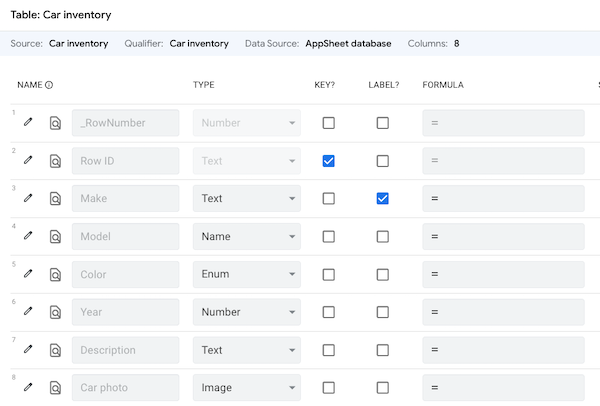

    The Car inventory table is displayed. Notice that the source is the Car inventory table in the AppSheet database that you created in the previous step.

    The Data page of the app in the app editor
  4. To change the name of the app, click in the app name field in the top left corner of the app editor and change the name to Car inventory.

    Rename the app to Car inventory
  5. To edit the Year column properties, click Edit  adjacent to the Year column.

    Click the pencil icon to edit the Year column properties
  6. Turn off Show thousands separator -- since this value will depict the year the car was built which doesn't require a separator.

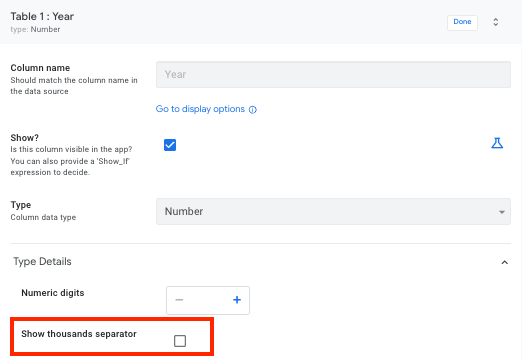

    Turn off Show thousands separator in the Year column properties
  7. Click Done.

Next, you'll build an automation to extract information from a photo using AI.

Step 3: Build an automation to extract information from a photo using AI

To build an automation to extract information from a photo of a car using the Extract AI task , do the following:

  1.  In the app editor, go to Automation Automation icon.

    Click automation in the left navigation pane
  2. Click + in the top header of the Bots pane.

    Click + to add a new bot

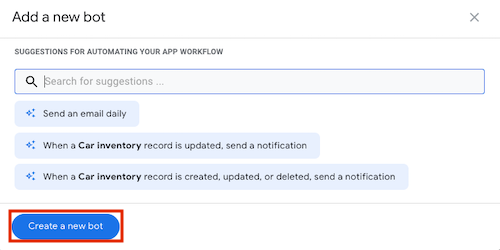

  3. In the Add a new bot dialog, click Create a new bot.

    Click Create a new bot in the Add a new bot dialog

    A new empty bot is created and displayed in the center pane of the app editor.
  4. Edit the name of the bot.
    1. Position your cursor over the New Bot in the left navigation pane.
    2. Select More  > Rename.

      Select Rename in the More menu to rename the bot
    3. Rename the bot to Update car inventory and press Enter.
  5. In the new bot flow in the center pane, click Configure event.

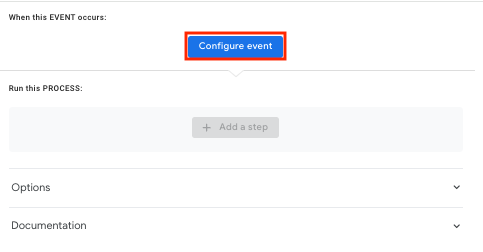

    Click Configure event in the bot flow in the center pane
  6. For Event name, enter Update car inventory and click Create a new event.

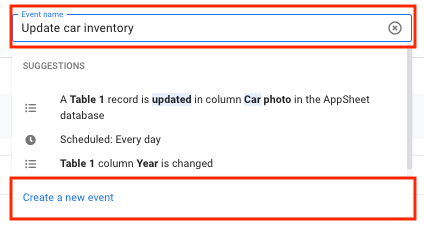

    Event configuration with event name set to Update car inventory and Create a new event button highlighted

    The Settings pane opens in the right side of the app editor.

  7. Configure the event by defining a condition to ensure that a car photo is uploaded before triggering the automation. as follows:
    1. Click in the Condition field.
      The Expression Assistant opens.
    2. In the text box enter: ISNOTBLANK([Car photo])

      Expression Assistant with ISNOTBLANK() expression

      This expression ensures that Car photo column is not blank and contains a photo of the car.
    3. Click Save.
    4. Leave all other settings set to the defaults.

      The Settings pane appears as follows:

      Event settings
  8. In the bot flow in the center pane, click + Add a step.

    Click Add a step in the bot flow
  9. For Step name, enter Extract from photo and click Create a new step.

    Set step name to Extract from photo and click Create a new step

    The Extract from photo task is added and the configuration settings are displayed in the right pane.

    You might need to select the task in the center pane to view the configuration settings.
  10. Edit the task configuration settings in the right pane, as follows:
    1. Set the task type set to AI task.
    2. Leave the AI task field set to Extract. This AI task type extracts information from a photo, PDF, or text.
    3. Leave the Input column field set to Car photo. This is the Image column that is used to upload a car photo.
    4. Under Output:
      1. Select Save to table to save the extracted information to the AppSheet database.
      2. Notice that the first column is added and set to Make
        Leave this column selection as is.
      3. Click Add and select Model in the drop-down, if it's not already selected.
      4. Click Add and select Color in the drop-down, if it's not already selected.
      5. Click Add and select Year in the drop-down, if it's not already selected.
      6. Click Add and select Description in the drop-down, if it's not already selected.

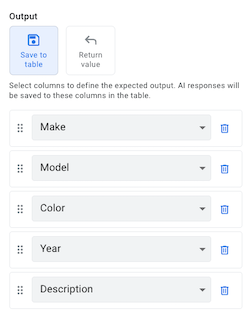

        The Output section appears as follows:

        Turn on Save to tabl, and select all columns and click Select 4 columns
    5. In the Additional instructions field, enter:

      If not sure of Make, Model, or Year, make best guess
      If not sure of Color, set to "Other"

      For Description, add 2 to 3 sentences

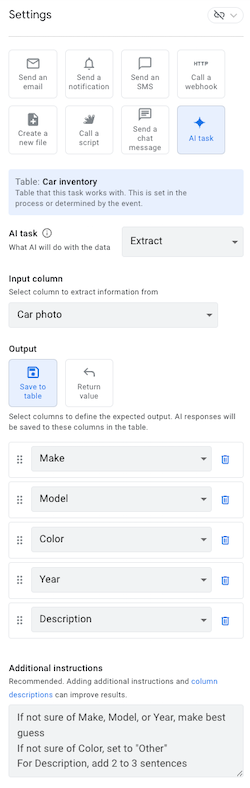

      The Settings pane appears as follows:

      Settings pane for Extract AI task
  11. Click Save to save the app.

    Save the app

Next, you'll customize the input form that is used by app users to upload a car photo.

Step 4: Customize the input form

When you created your app, AppSheet auto-generated two views--a form view to add a new car to the inventory and a detail view to view the car details. In this step, you'll edit the form view to customize the fields that display in the input form that is used by app users to upload a car photo.

To customize the input form, do the following:

  1. Go to App App icon > Views.

    Select App > Views
  2. In the left navigation pane, under the System-Generated views click Car inventory_Form to open its configuration in the center pane.

    Select Car inventory_Form in the nav pane
  3. In the center pane, in the Column order field select Manual

    Select Manual for Column order

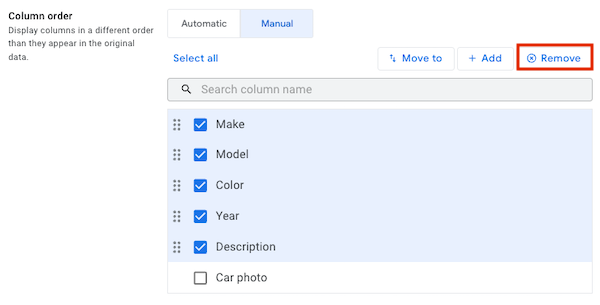

  4. In the column order list, select all columns except Car photo and click Remove.

    Select all but Car photo in the columns list and click Remove

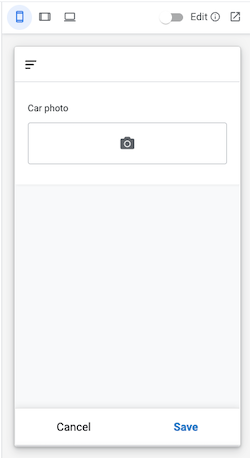

Notice that the input form is updated in the app preview to only show the Car photo field.

Updated input form in app preview

Next, you'll run automation in the app preview.

Step 5: Run the automation in the app preview

When using the app preview, any changes that you make are saved to your data source.

To run the automation in the app preview, do the following:

  1. Before you proceed, you'll need a photo of a car. Take a photo of your own car or download one from the internet.
  2. In the app preview, Click in the Car photo field.

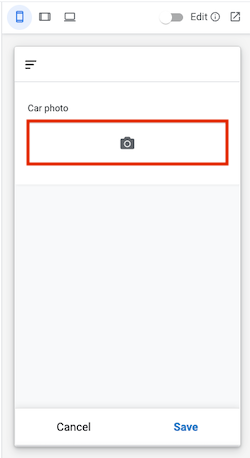

    Click in the Car photo field to upload a photo
  3. Navigate to the car photo in you local drive and click Open.
  4. Click Save.

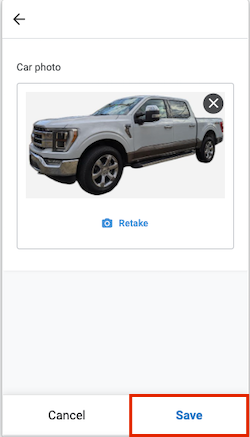

    Upload car photo and click Save

    The car photo image is uploaded. AppSheet syncs the app, as indicated by the sync notification:

    AppSheet sync indicator

    As AppSheet syncs the app, AI extracts information from the photo to populate the remaining fields. When the sync completes, the car is added to the inventory.
  5. Click Car inventory to navigate to the car inventory list.
  6. After the sync completes, click the new car item in the list to view the details.

    Click to view car details

    Notice that the Make, Model, Color, Year, and Description fields have been auto-populated .

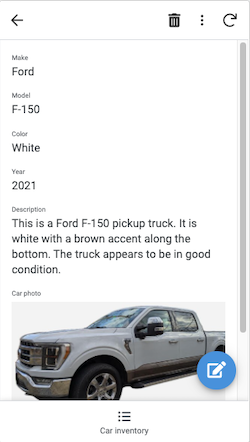

    Car details with auto-populated fields

Congratulations! You have built an automation using AI to extract information from an image.
