Build an automation using Gmail

Build automations using Gmail events that can be triggered by on one or both of the following:

• Add label to an email
• Remove label from an email

The Gmail event will be triggered if the selected email label is manually added or removed in the Gmail UI, or if it is applied automatically using a Gmail filter, as described in Create rules to filter your emails.

Build an automation using Gmail as described in the following sections:

• Get started
• Steps to build automations using Gmail
• How to access content in the email messages
• How to support group email
• How to support delegated email
• Limitations

Get started

To get started building automations with Gmail, see Quick start: Build your first automation using Gmail.

Steps to build automations using Gmail

To build automations using Gmail, perform the following steps:

#	Step	Description
1	Create an email label in your Gmail account (Optional)	This step is optional. You can create a new label that will be used to trigger the Gmail event, as described in Create labels to organize Gmail. Alternatively, you can use one of the default Gmail labels (Inbox, Unread, Starred, and so on).
2	Use the email label interactions to trigger an automation	Build an automation and configure a Gmail event.  Gmail events are tableless. When you connect a Gmail account to your AppSheet app when adding a Gmail event to an automation, it is added as a data source but no table is added to your app. For more information, see What is a tableless event? To view or delete the Gmail data source, see Use multiple data sources. Note: When a Gmail event is triggered for a message on an email thread, the automation is also triggered for each subsequent reply in the thread.
3	Access content in the email messages (Optional)	This step is optional. You can access content in the email message associated with a Gmail event using the available message column values. See How to access content in the email messages. All email message content is read-only.

How to access content in the email messages

To access content in the email messages, you can use the column values listed in the following table. All email message content is read-only. For more information about the email message content, see Gmail API Overview.

Column	Type	Description
[Body]	LongText	Body of the email message
[CcAddresses]	List	List of recipients' addresses (Text or Email) that are copied on the email  Note: To save the list values, use an EnumList column with Allow other values turned on.
[Date]	DateTime	Date the email message was sent
[From]	Text	From address
[Internal Date]	DateTime	Date the email was first received by Gmail
[Labels]	List	List of labels (Text) that are added to the email message Notes: To save the list values, use an EnumList column with Allow other values turned on. Predefined labels aren't translated.
[Message ID]	Text	ID of the message
[Related Gmail Event Attachments]	List	Note: For beta, Gmail attachments are not yet supported. This column field is empty. Related attachments
[ReplyTo]	Text	ReplyTo address
[Subject]	Text	Subject line of the email message
[Thread ID]	Text	ID of the email thread
[ToAddresses]	List	List of recipients' addresses (Text or Email) Note: To save the list values, use an EnumList column with Allow other values turned on.

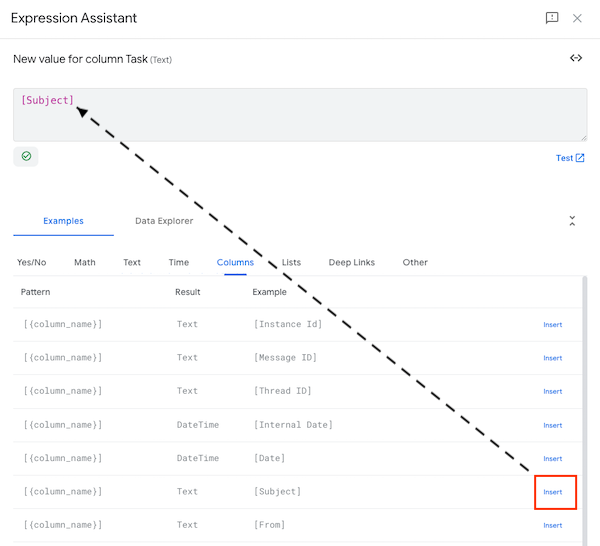

To view the column values in the Expression Assistant, click the Examples tab and click the Columns sub tab of the Examples tab.

For example:

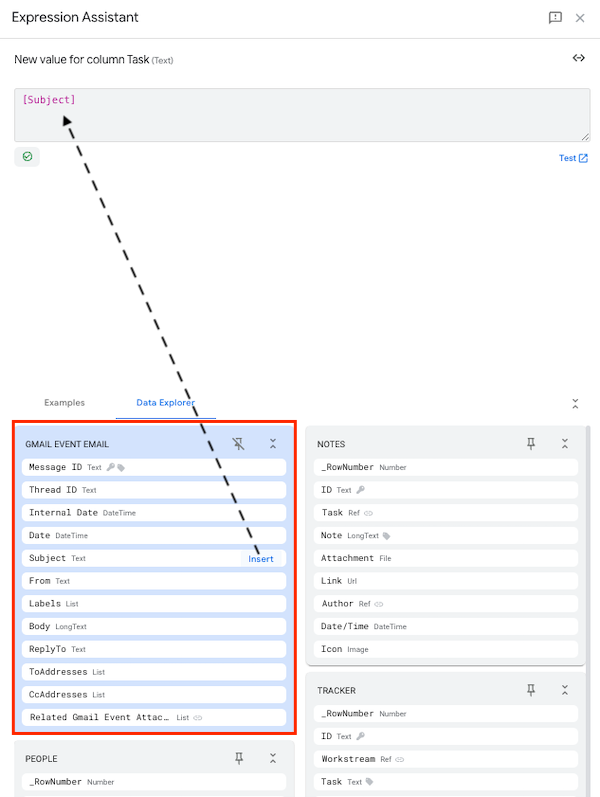

You can also view the message content available in the Gmail Event Email section on the Data Explorer tab.

How to support group email

To support group email, like my-group.googlegroups.com, do the following:

1. Automatically forward the group email to your personal email inbox by setting the subscription preferences to Each email. See Manage your subscription and global settings.
2. Use a Gmail filter to label messages coming from the group automatically.
   For more information, see Create rules to filter your emails.

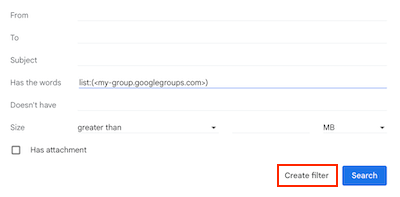

   1. Open the email in your inbox.
   2. Select More > Filter messages like this.


   3. In the dialog, click Create filter.


   4. Select Apply the label and select a label from the drop-down. Then, click Create filter.

 How to support delegated email

To support delegated email, do the following:

1. Automatically forward the delegated email to your personal email inbox, as descrbied in Automatically forward Gmail messages to another account.
2. Use a Gmail filter to label messages coming from the forwarded email.
   For more information, see Create rules to filter your emails.
   1. Open the email in your inbox.
   2. Select More > Filter messages like this.

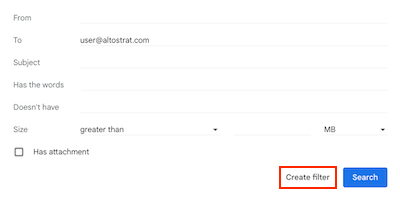

   3. In the dialog:
      1. Delete the From field contents.
      2. Populate the To field with the delegated user email.
      3. Click Create filter.


   4. Select Apply the label and select a label from the drop-down. Then, click Create filter.

Limitations

The following summarizes the list of known limitations of Gmail events for the beta release:

• For [Body], if there is no text-based version of the email message body, a blank body is returned.
• Gmail attachments, stored in [Related Gmail Event Attachments], are not yet supported.
• Use of webhooks are not yet supported with Gmail events.
